Home /Products/Crawler Lawn Mower/Garden 4-Stroke Automatic Electric Grass Cutter Lawn Mower With Gasoline Engine

Garden 4-Stroke Automatic Electric Grass Cutter Lawn Mower With Gasoline Engine

1 Set
MOQ
$2,200.00(1 - 14 Sets) $2,000.00(15 - 29 Sets) $1,500.00(>=30 Sets)
Price
Garden 4-Stroke Automatic Electric Grass Cutter Lawn Mower With Gasoline Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Grade: DIY
Warranty: 1 Year
Engine Displacement: 190CC
Voltage: 230V
Power: 1200W, 7.5hp
Customized Support: OEM
Model Number: HT-750
Feature: 4-Stroke, Cordless
Forward Speed: 6KM/H
Power Source: Petrol/Gasoline
Product Name: Crawler Lawn Mower
Engine: LONCIN Gas Engine
Type: Vertical Axis Four Sroke
Fuel Tank: 1.2 L
Blade Model: 22 "swing Knife
Walking Mode: Crawler Self-propelled
Model Of Operation: Romote Control Walking, Remote Control Cutter Head Lifting
Remote Control Distance: 100 M
Climbing Angle: 0-30 Degree
Certification: GS, Ce
Basic Infomation
Certification: GS, ce
Model Number: HT-750, 22 "swing knife, Romote control walking, remote control cutter head lifting
Payment & Shipping Terms
Product Description
Product Description

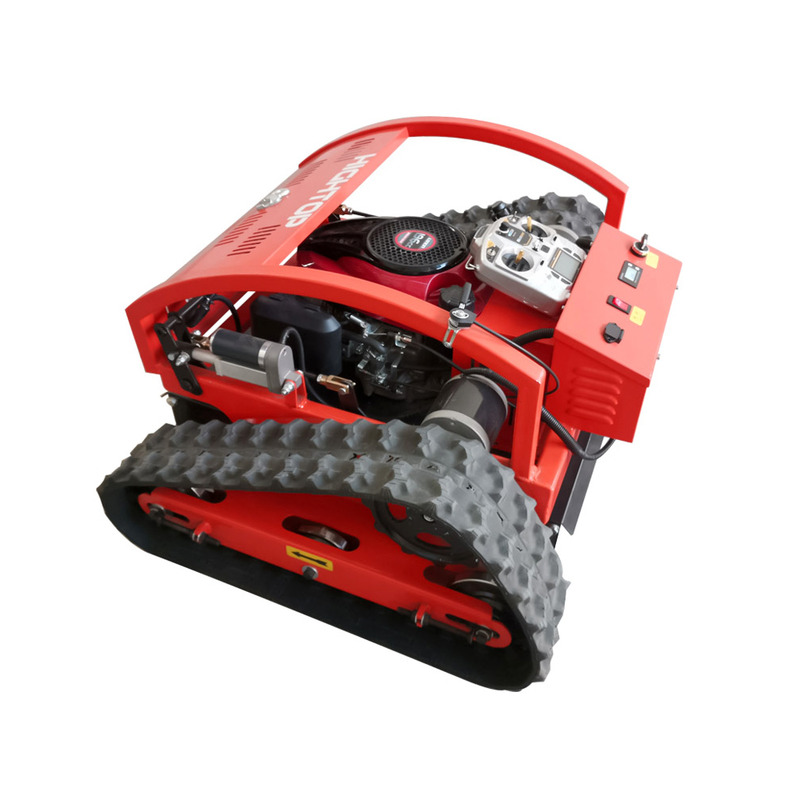

Mini remote control lawn mower, mainly used in orchards, gardens, lawns, wastelands, slopes and other places with narrow and sloped working spaces. The main feature is remote control walking, equipped with a gasoline engine, and a liftable cutter head. It is safer and more efficient to use , Environmental protection, reduce noise.
Model
HT-750
Overall size
930*860*580 mm
Packing size
1060*960*810mm
Net weight
130 KG
Rubber track size
150*60*32mm
Cutter diameter
550 mm
Adjust height
10-150 mm
Cutting height
20-150 mm
Walking Speed
0-6km/h
Climbing angle
0-30 degree
Minimum groung clearance
20mm
Model of Operation
Romote control walking, remote control cutter head lifting
Walking Mode
Crawler self-propelled
Engine
LONCIN Gas engine
Power
7.5hp
Type
Vertical axis four sroke
Fuel tank
1.2 L
Remote control distance
100 m
Blade model
22 "swing knife
Packing & Delivery
Mini remote control lawn mower, mainly used in orchards, gardens, lawns, wastelands, slopes and other places with narrow and sloped working spaces. 008615898612525
Usage
Operating instructions of lawn mower
1, Preparation before starting the remote control mower
(1)Be sure to confirm the tightness of screws of all parts before starting up.
(2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote
controller to turn on the remote controller.
(3)When the remote control is turned on, a "drip" will appear, indicating that the machine matches the remote control normally.
(4)engine start;
a,Release the brake on the right side of the engine (also disconnect the flameout switch);
b,Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);
c,Pull hard on the pull rope of the hand pull plate to start the engine;
d,Adjust the throttle to the proper speed in time after starting the engine;
e,Operate the remote control to cut grass.
2,Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed gear) The left
joystick controls the machine to walk forward and backward, and the right joystick controls left and right turns
5 Channel (two-stage switch):The cutter head rises and falls to adjust the cutting height of the cutter head.
Rudder fine adjustment (left-right adjustment): When adjusting the walking speed of the machine, the electronic adjustment in the
machine will make a "drip" sound. Only then can the "Rudder fine adjustment" button be used until the electronic adjustment in the
machine does not make a sound.
Throttle fine adjustment (up and down adjustment): the same principle as the "rudder fine adjustment" button.
Power switch: push up to turn on the remote control, and pull down to turn off the remote control.
